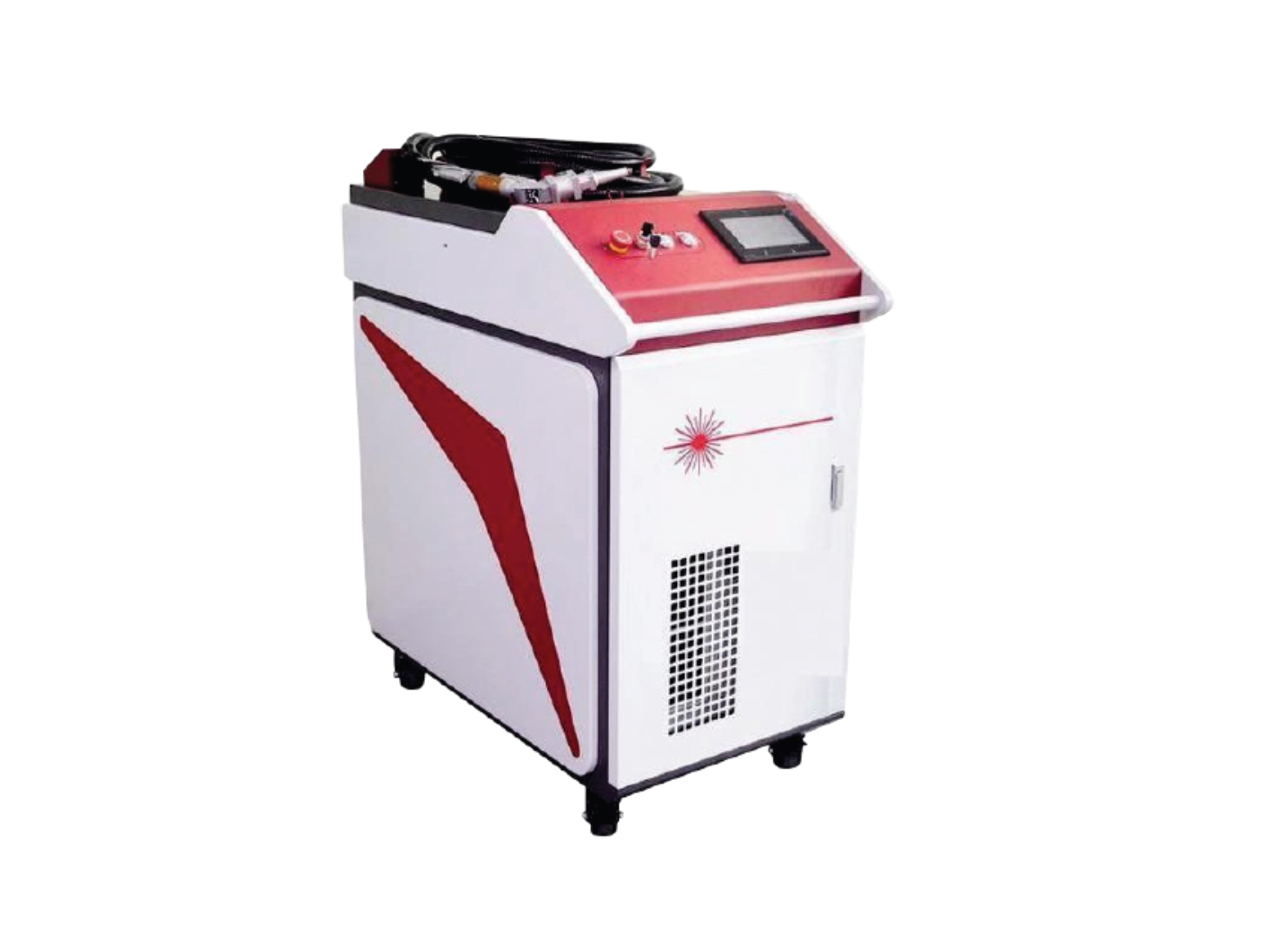

Laser Welding Machine
Laser Welding Machine
| Rated Output Power | 500W | 1000W | 1500W | 2000W |
| Power Adjustment Range | 500W 2% | 1000W 2% | 1500W 2% | 2000W*2% |
| Laser Type | Continuous | Fiber Laser | ||
| Laser Wavelength | 1070nm | |||
| FM | O~5Khz | |||
| Spot Diameter | 5~7mm | |||
| Welding Speed Range | 1~120mm/s | |||
| Welding Gap Requirements | <0.5mm | |||
| Wire Width | <4mm | <5mm | ||
| Rated Output Power | 500W | 1000W | 1500W | 2000W |
| 1<1.2 mm Stainless Steel |
<2.5 mm Stainless Steel |
<4 mm Stainless Steel |
<5 mm Stainless Steel |
|
| Welding Thickness | <0.8 mm Carbon Steel |
<1.5 mm Carbon Steel |
<2.5 mm Carbon Steel |
<3.5 mm Carbon Steel |
| <1 mm Aluminum |
<2 mm Aluminum |
<3 mm Aluminum |
||
| Beam Quality | M ² 1.1 | M ² 1.15 | M ² 1.2 | M ² 1.2 |
| Output Fiber Length | Standard | 10 m / | Customizable Lengthening | |
| Fiber Bending Radius | 100 | mm | ||
| Way of Working | Continuous CW | / Modulation | ||
| Working Environment Temperature Range | 15~35°C/<70%without | condensation | ||
| Weld Head Operating Mode | Normal | / Hand-Held | Swing Welding | Mode |
| Power Consumption of the Whole Machine | 4 KW | 6 KW | 9 KW | 12 KW |
| Cooling Mode | Built-in | chiller | ||
| Power Requirements | AC220V+10%/50Hz/40A | Three-phaseAC380V+10%/50Hz/40A |
