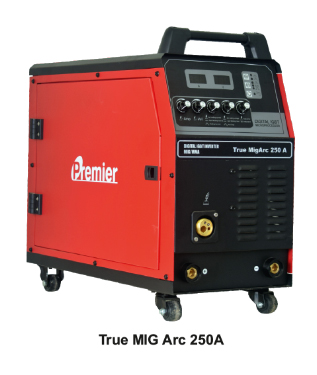

True MIG ARC Welding Series
True MIG ARC Welding Series
| Model | True MIG Arc 250A | ||
| Product Code | IWM-101082 | ||
| Item | MIG | MMA | |
| Input voltage | |||
| V | |||
| Input voltage frequency | AC380V±15% | ||
| (HZ) | 50/60 | ||
| Rated input power capacity | |||
| KVA | 9.4 | 10.6 | |
| Rated input current | A | 14.2 | 16 |
| Output current range | A | 20-270 | 20-270 |
| No-load voltage(V) | 54 | ||
| Duty cycle% | 60 | ||
| No-load consumption (W) | 60 | ||
| Efficiency % | 85 | ||
| Power factor | 0.93 | ||
| Insulation class | F | ||
| Protection class | IP21S | ||
| Weight(KG) kg | 21 | ||
| Dimension(mm)(mm | 622x280x440 |

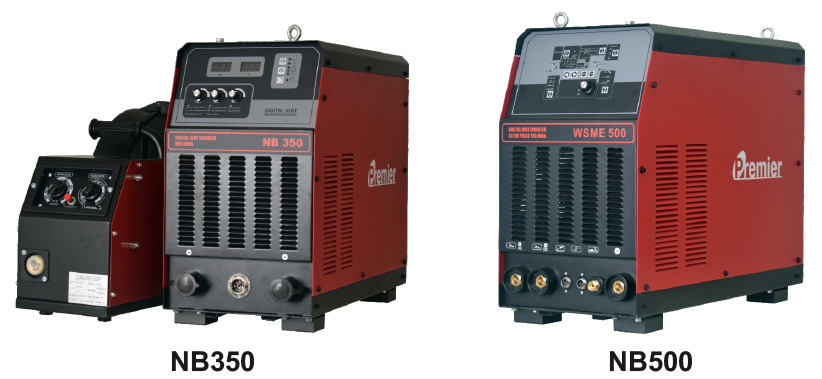

Professional MIG Welding Series
| Model | NB350 | NB500 | ||||
| Product Code | IWM-101085 | IWM-101100 | ||||
| Parameter | MMA | MIG | MMA | MIG | ||
| Adjustment range G | Preset | Adjustment range | Preset | |||
| Input power voltage (V) | AC380V±15% 3PH | AC380V±15% 3PH | ||||
| Input voltage frequency | 50/60 | 50/60 | ||||
| (RHaZt)ed input power | 15 | 14 | 25.3 | 24.6 | ||
| cOauptapcuitt ycu(rKrVenAt) range (A) | 4.01-350 | 40-350 | 40-500 | 40-500 | ||
| No-load voltage (V) | 67 | 77 | ||||
| Pre-flow(0.1S) | 0-20 | 0 | 0-20 | 0 | ||
| Post-gas(0.1S) | 0-20 | 0 | 0-20 | 0 | ||
| Burn back time(0.1S) | 0-20 | 0 | 0-20 | 0 | ||
| Duty cycle (%) | 60 | 60 | ||||
| No-load consumption (W) | 60 | 60 | ||||
| Weight (KG) | 35.7 | 40 | ||||
| Dimension (mm) | 622×280×480 | 622×280×480 | ||||
