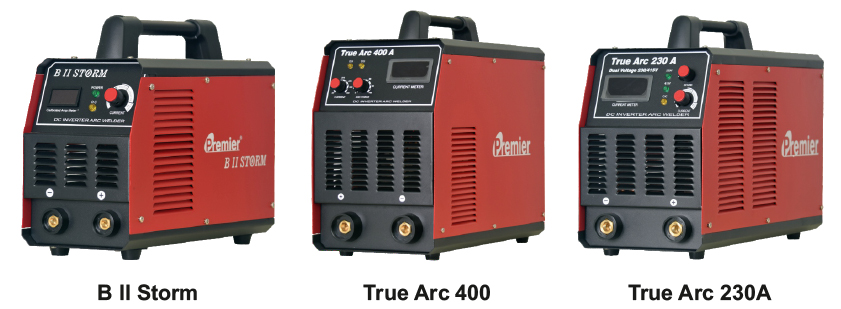

True ARC Welding Series
True ARC Welding Series
| MODEL | B II Storm | True Arc 400 | True Arc 230A |
| Product Code | IWM-101079 | IWM-101078 | IWM-101077 |
| (V) | AC220V+15% 1HP | AC380V+15% 3PH | AC220V+15% 1PH |
| Rated input power capacity (KVA) | 5.3 | 18.2 | 8.5 |
| Input voltage frequency (HZ) | 50/60 | 50/60 | 50/60 |
| Rated input current (A) | 24.2 | 27.6 | 38.6 |
| No-load voltage (V) | 60 | 67 | 56 |
| Output current range (A) | 30-160 | 30-400 | 30-230 |
| Rated output voltage (V) | 26.4 | 36 | 29.2 |
| Duty cycle (%) | 60 | 60 | 60 |
| Insulation class | F | F | F |
| Protection class | IP21S | IP21S | IP21S |
| Diameter of rod | 1.6 - 4.0 | 2.5 - 5.0 | 2.5 - 5.0 |
| Power factor | 0.93 | 0.93 | 0.93 |
| Efficiency (%) | 85 | 85 | 85 |
| Weight (KG) | 4.5 | 15.5 | 10 |
| Dimension (mm) | 283 x 133 x 198 | 450 x 220 x 343 | 400 x 180 x 270 |
