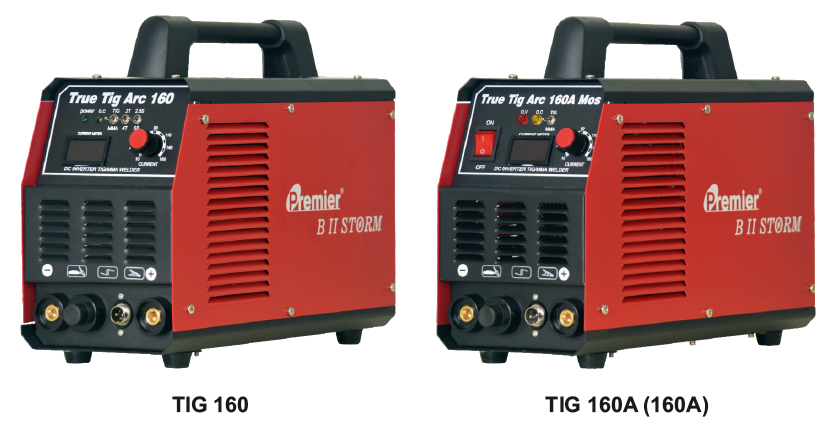

True TIG ARC Welding Series
True TIG ARC Welding Series
| MODEL | TIG 160 (160A) | TIG 160A (160A) | ||
| Product Code | IWM-101083 | IWM-101084 | ||
| MMA | TIG | |||
| (V) | ACC220V+15% | 1PH | AC220V+15% 1PH | |
| Rated input power capacity (KVA) | 3.3 | 4.7 | 3.3 | |
| Rated input current (A) | 15.1 | 21.5 | 15.1 | |
| No-load voltage (V) | 42 | 56 | ||
| Output current range (A) | 10-160 | 10-145 | 10-160 | |
| Rated output voltage | 16.4 | 25.8 | 16.4 | |
| Arc force adjustment (A) | ||||
| Post-gas times (S) | 2+0.5 | 2+0.5 | ||
| Duty cycle (%) | 60 | 60 | ||
| Weight(KG) | 9 | 9 | ||
| Dimension (mm) | 356 x 153 x 225 | 356 x 153 x 225 | ||

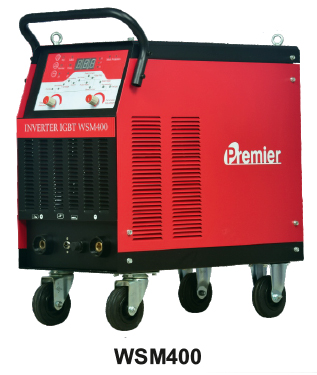

Professional TIG Welding
| MODEL | WSM400 | ||
| Product Code | IWM-101068 | ||
| MMA | TIG | ||
| Adjustment range | Preset | ||
| Input power voltage (V) | AC380V±15% 3PH | ||
| Input voltage frequency (HZ) | 50/60 | ||
| Rated input power capacity (KVA) | 17 | 12.2 | |
| No-load voltage (V) | 67 | 67 | |
| Output current range (A) | 20-400 | 20-400 | |
| MMA arc force (A) | 20-200 | 30 | |
| Constant current (A) | 20-400 | ||
| Pre-flow (S) | 0-5 | 0.2 | |
| Arc-striking current (A) | 20-100 | 20 | |
| Up-slope (S) | 0-10 | 0.5 | |
| Peak current (A) | 20-400 | ||
| Base current (A) | 20-400 | ||
| Pulse frequency (HZ) | 1-200 | 10 | |
| Pulse width (%) | 1-99 | 50 | |
| Down-slope (S) | 0-10 | 0.5 | |
| Arc-ending current (A) | 20-160 | 20 | |
| Post-gas (S) | 0-10 | 2 | |
| Duty cycle (%) | 60% | ||
| Weight (KG) | 36.5 | ||
| Dimension (mm) | 622 x 280 x 480 | ||

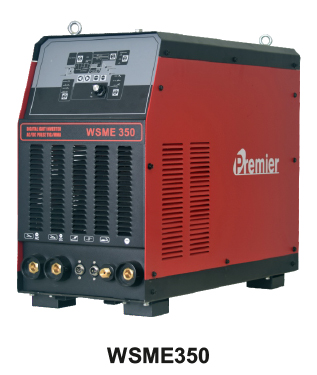

Professional Tig Welding Series
| MODEL | WSME350 | ||
| Product Code | IWM-101086 | ||
| MMA | TIG | ||
| Adjustment range | Preset | ||
| Input power voltage (V) | AC380V±15% 3PH | ||
| Input voltage frequency (HZ) | 50/60 | ||
| Rated input power capacity (KVA) | 15 | 10.6 | |
| No-load voltage (V) | 77 | 77 | |
| Output current range (A) | 40-350 | 5-350 | |
| Constant current (A) | 5-350 | ||
| Pre-flow (S) | 0-10 | 0.1 | |
| Hot start current(A) | 10-350 | 50 | |
| Arc-striking current (A) | 5-350 | 40 | |
| Up-slope (S) | 0-10 | 5 | |
| Spot welding(S) | 0-10 | 3 | |
| Base current (A) | 5-350 | 10 | |
| Peak current (A) | 5-50 | 150 | |
| Pulse width (%) | 10-90 | 50 | |
| Pulse frequency (HZ) | 0.1-20 | 5 | |
| Clear width (%) | 10-90 | 30 | |
| Clear depth(%) | -50~+50 | 0 | |
| AC frequency (HZ) | 20-200 | 80 | |
| Down-slope (S) | 0-10 | 5 | |
| Arc-ending current (A) | 5-350 | 20 | |
| Post-gas (S) | 0-10 | 5 | |
| Duty cycle (%) | 60% | ||
| Weight (KG) | 39.5 | ||
| Dimension (mm) | 622 x 280 x 480 | ||
